409 1.4512 X2CrTi12 Cold Rolled Stainless Steel Strip In Sheet For Automotive Exhaust Pipe

409 1.4512 X2CrTi12 Cold Rolled Stainless Steel Strip In Sheet

409 is a low cost ferritic stainless steel. Its dominant use is in vehicle exhaust systems.

Stainless 409 grade combines the following characteristics:

• Basic corrosion and oxidation resistance
• Composition balanced for optimum formability
• Weldable only in thin sections due to fully ferritic structure
• Low cost and limited cost variation due to low alloy content

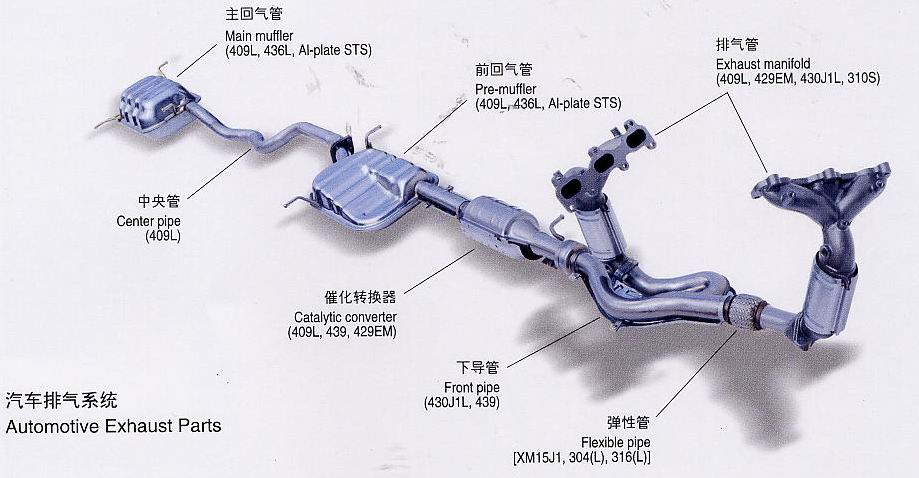

Automotive exhaust systems have to withstand aggressive conditions from high temperatures

at the manifold end, sulphuric acid condensate and de-icing salt. Given the severity of these conditions,

it can seem surprising that the 11% Cr 409 grade has met the challenge for many years.

Exhaust components are also required to be bent, expanded and pressed into all sorts of convoluted shapes.

The ability of a ferritic steel to meet these formability requirements is little short of amazing.

Other applications include:

Heat exchangers, gas boilers, fuel filters.

Product forms

stainless steel sheets, coils, slit strip, cut to length plate

For Details, please Contact

WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs

Tel: +86 510 81812873

Email: export@guanglusteel.com

stainless strip steel

1.4028 stainless steel

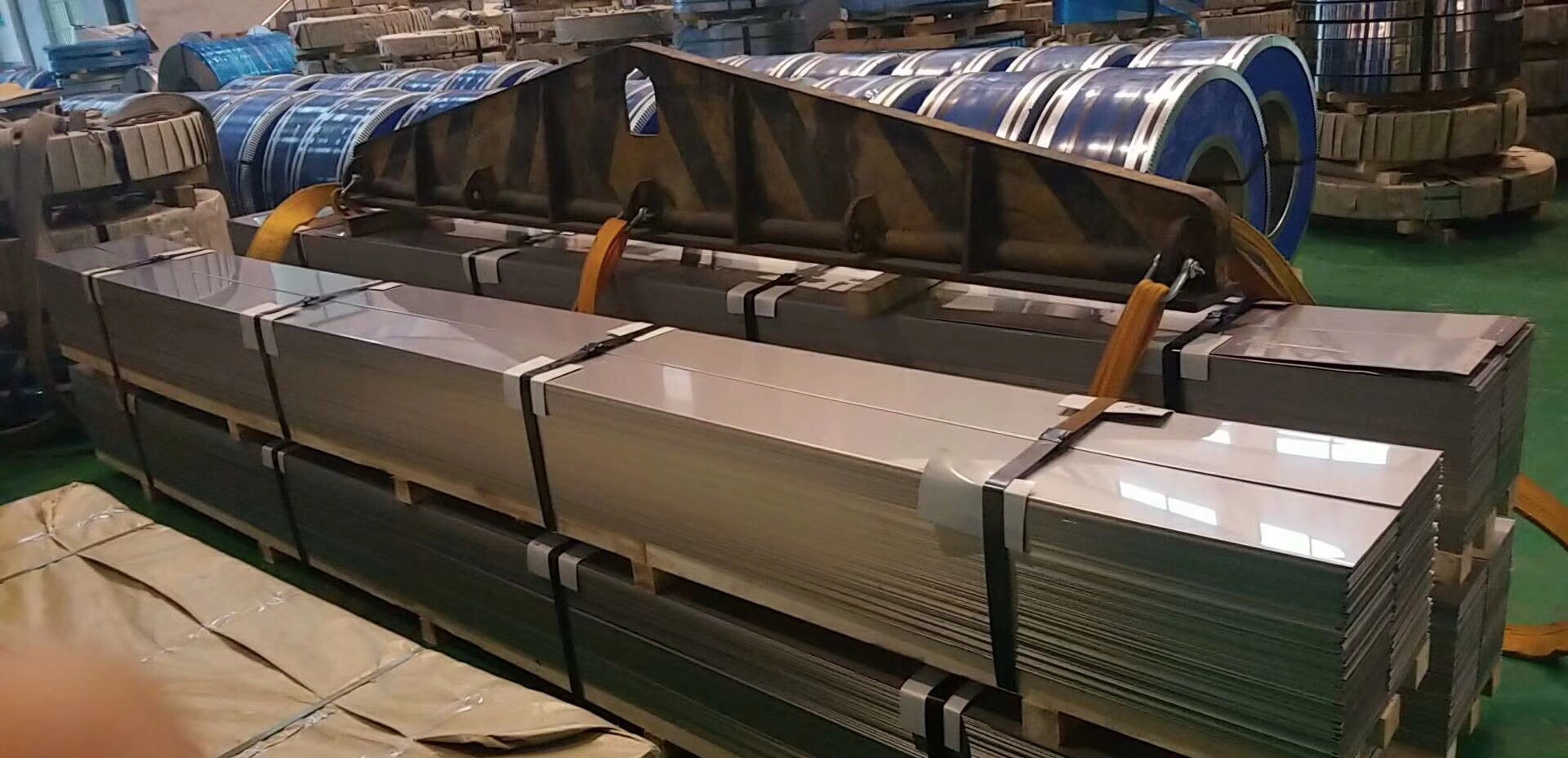

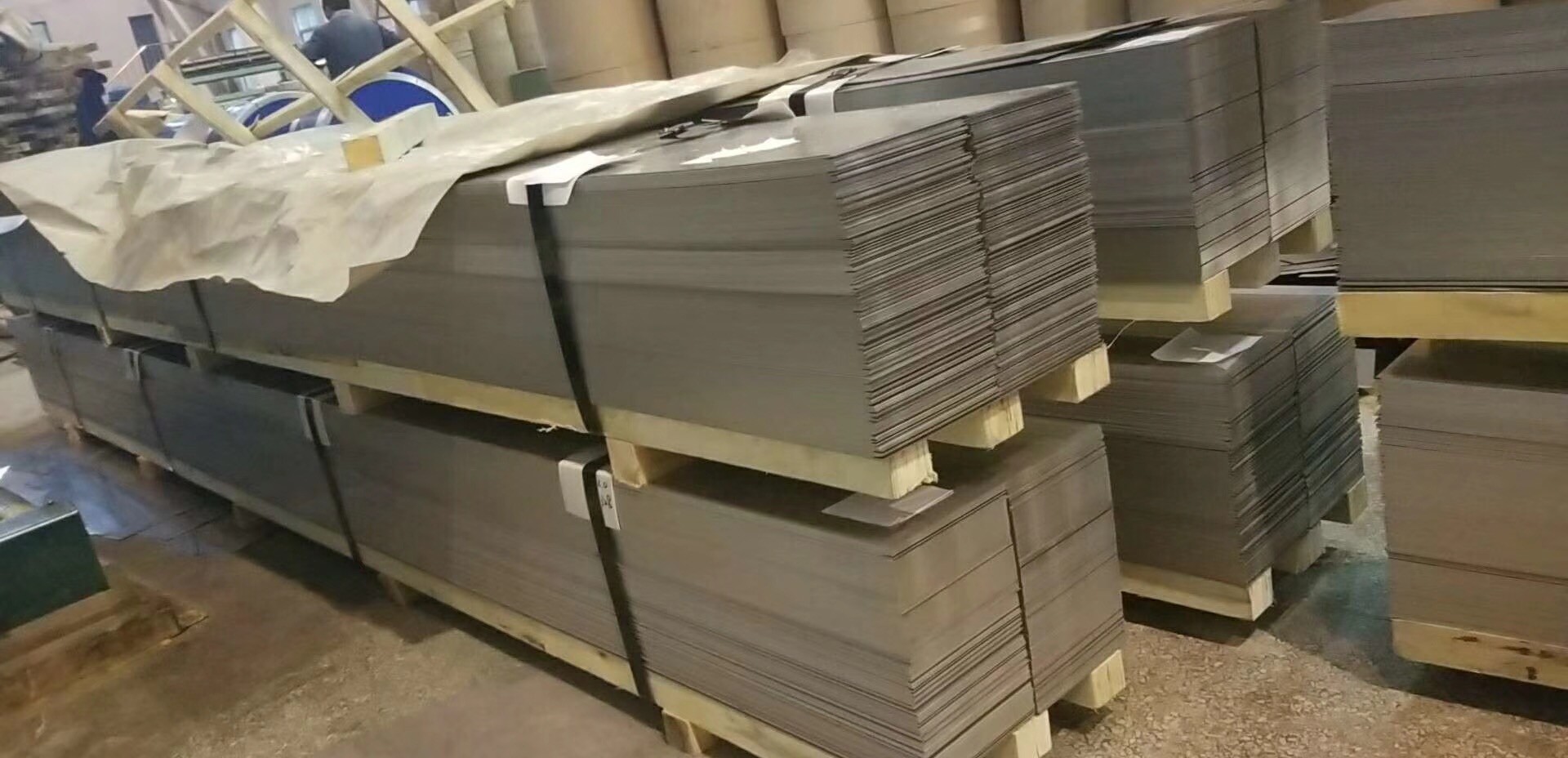

409 1.4512 X2CrTi12 Cold Rolled Stainless Steel Strip In Sheet For Automotive Exhaust Pipe Images
